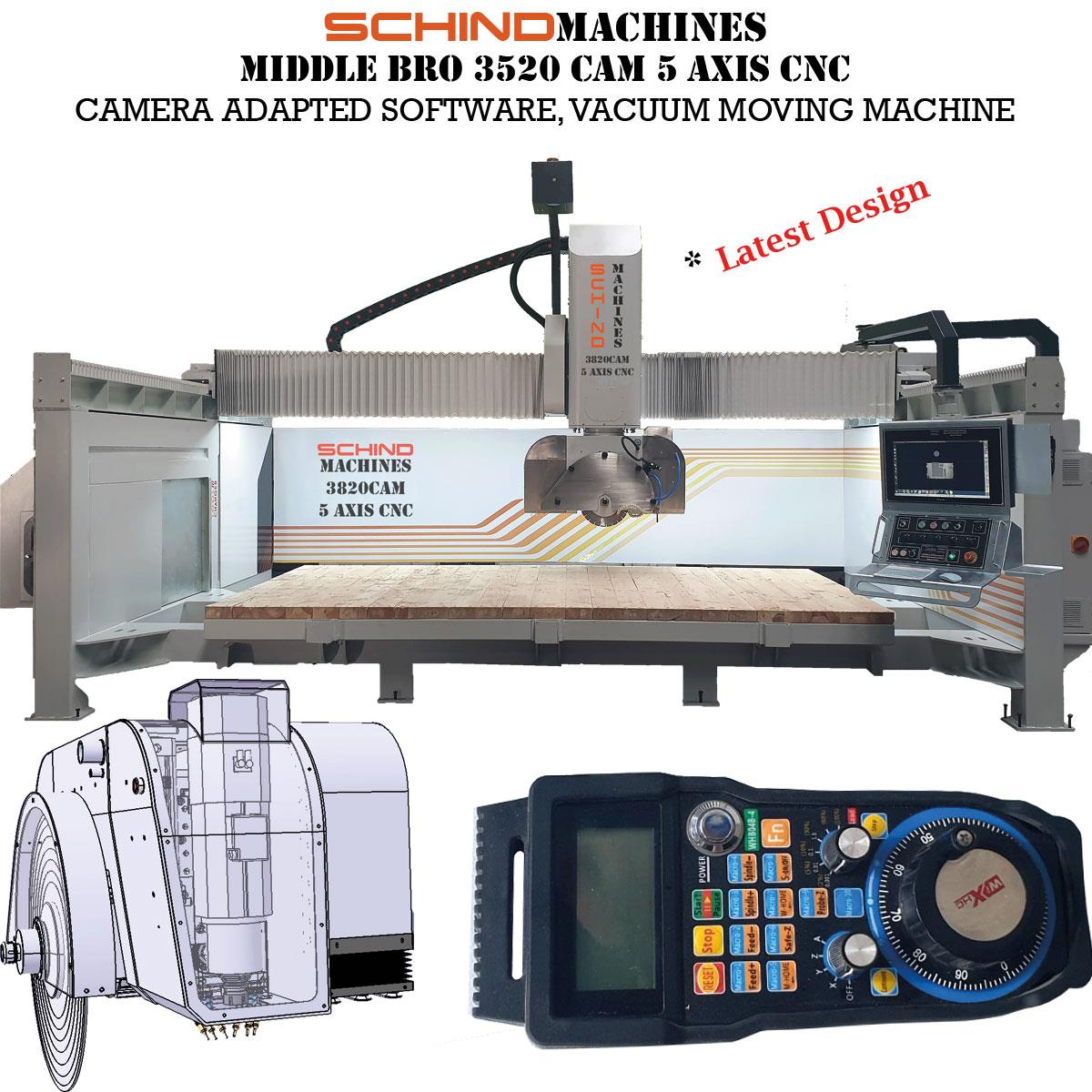

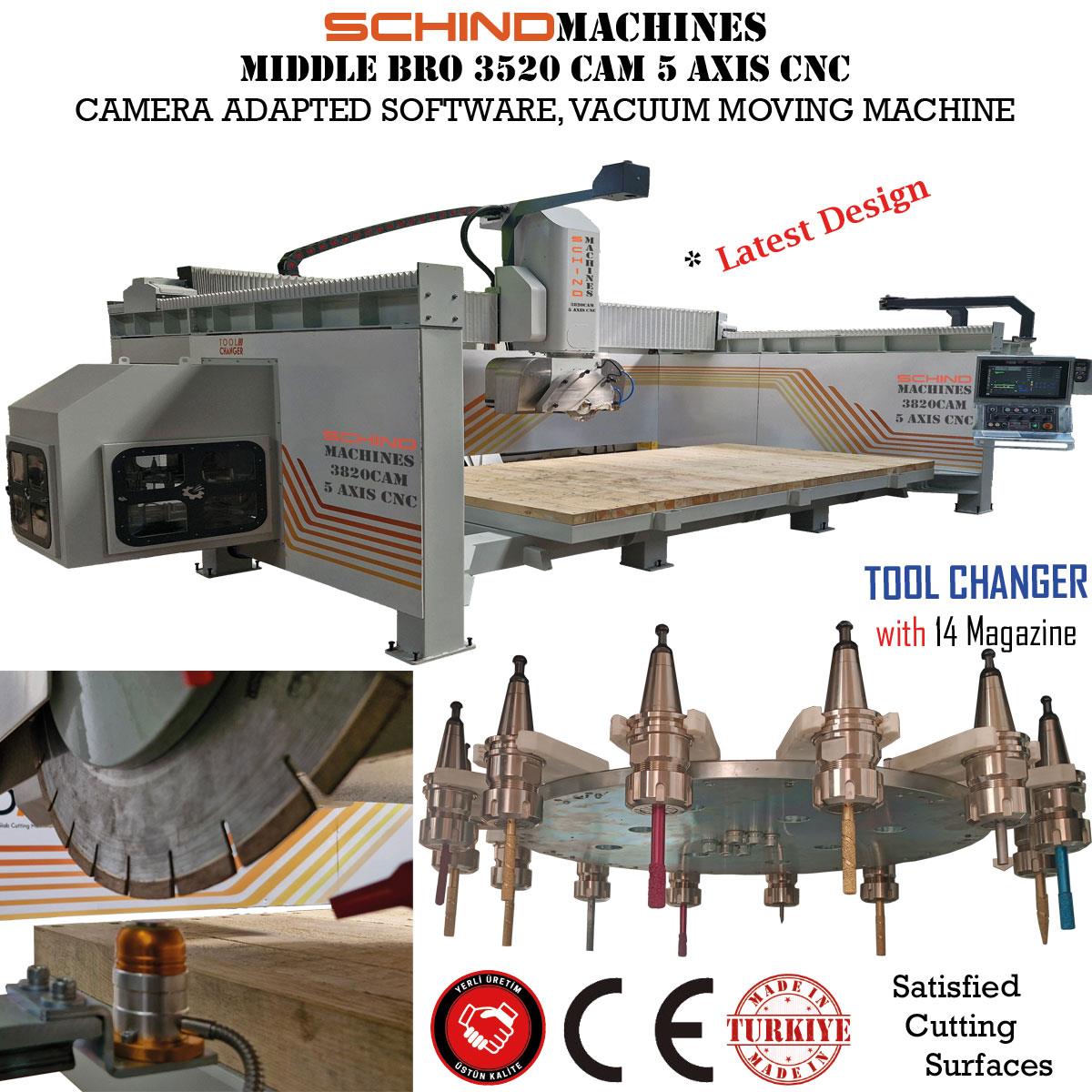

SCHINDMACHINES MIDDLE BRO 3520CAM 5 AXIS CNC SLAB CUTTING & MILLING MACHINE
Multi-Function SchindMachines Middle Bro CNC 5 Axis Bridge Saw Machine makes routing applications easily by milling features... CNC 5 axis cutting and milling machine are good at kitchen sink quartz countertop, tombstone, decorative stone processing, etc.
Brand: | SCHIND |
Category: | Machine , Marble, Natural Stone and Granite Machines |
Origin: | Turkiye |
Minimum Order: | 1 |
Cutting Head Motion : | 360° |
Machine Control System: | CNC 5 AXIS |
Workbench Width: | 2000 x 3500 mm (78 x 137 inches) |
Saw Motor Power: | 15 kW - 20,25HP |
Circular Head Motion: | 360° |
Saw Diameter: | Ø300 mm - Ø600 mm |
Saw Speed: | 0 - 3000 Rpm Inverter Controlled |
Hydraulic Workbench: | Lifts up to 85° with Double Piston |
Max Cutting Thickness: | 100 mm (4 inches) |
Voltage: | 380 V, 3 Phase, 50Hz |
Water Consumption: | 25Lt / Minute (6,6 Gallon) |

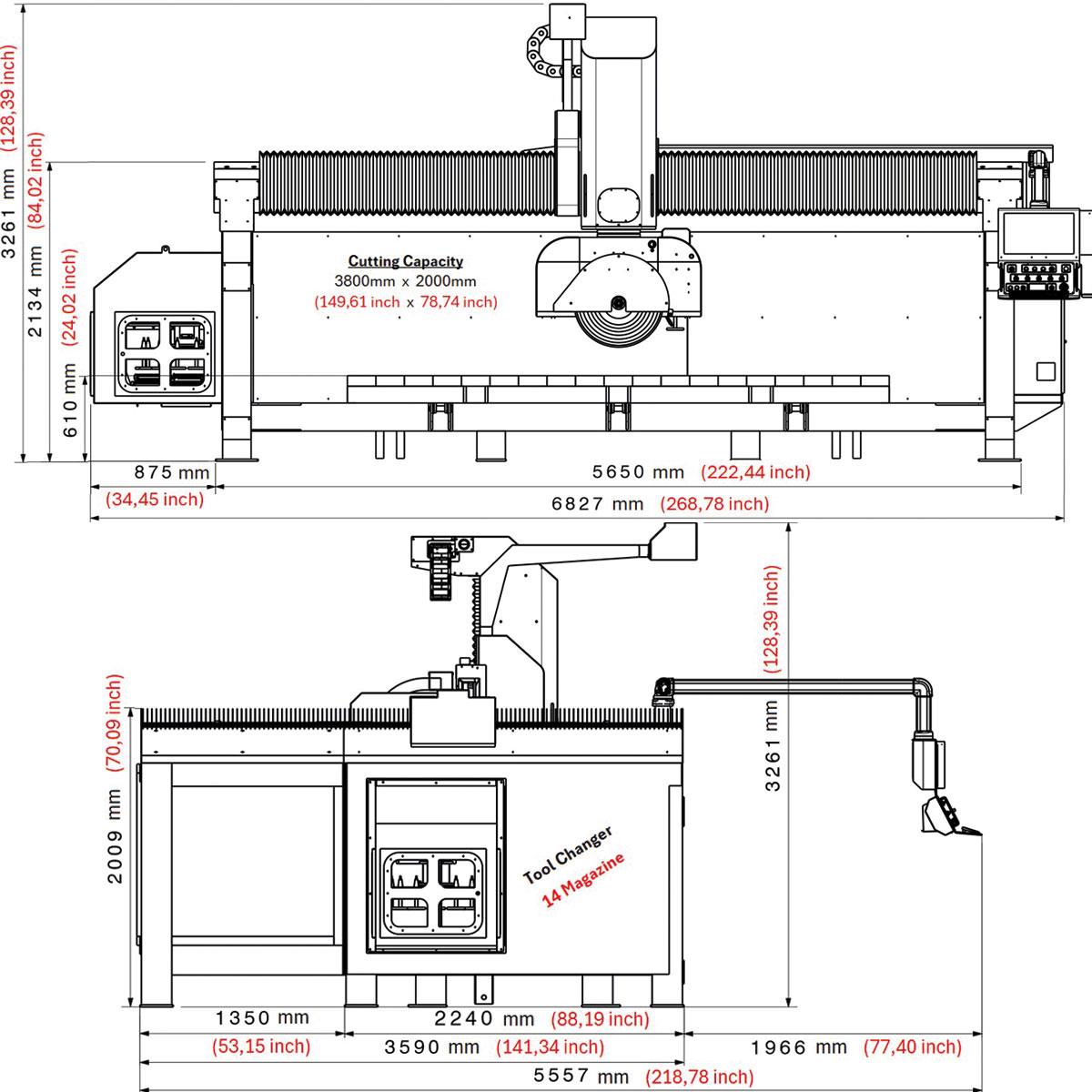

Machine Dimensions (width - length - height): | W 3500 x L 6500 x H 3200 mm |
Machine Weight: | 6500 Kg |
PRODUCT DESCRIPTION
Bridge type slab cutting machine is a CNC controlled automatic machine designed especially for curved or angled cutting of marble, granite, composite in the form of slabs in factories and workshops. PLC basis bridge type cutting machines can cut only straight and 45° on X & Y axes. So, we can say PLC machines are 3 axes. However, CNC basis bridge type cutting machines can make interpolation on X and Y axis to make orthogonal, diagonal, curved movements. And it cuts ellipse coffee tables, angles stairs, special designed curved flooring, kitchen countertop, angle engraved or name engraved tombstones etc. So CNC machine means processing head group has 360° rotating ability, and this feature is the 4th axis. If we add drilling bit in the center of saw shaft for engraving then this axis will be 5th axis. Our 5 axis CNC machine, which can be used as a vertical machining center after natural stone processing tools are installed. Schind 3520CAM bridge type CNC saw cutter can also be used as a router.
Since it is necessary to zero the vibration when working with natural stone in both horizontal cuts and vertical processing, it is necessary to use a monoblock body structure, strong chassis and quality parts at the movement points. All components of the multi-axis CNC marble slab cutting machine must be rigidly assembled technically and mechanically for advanced cutting purposes. Therefore, all vertical and transversal travels on the machine have 100% accuracy. Schind 5 Axis 3d Cnc Machine for stone slabs owes its precision cutting ability at high speeds to its rigid structure.
We use special software for scanning of marble, stone and granite slabs on our 5 axis bridge cutting saw machine. After it’s camera completes stone slab scanning with augmented reality, then the operator can distribute the objects on the scanned marble slab on the screen. Automatic slab cutting and processing are possible with software optimization fully automated and can be programmed from the control panel which has a user-friendly interface. Multi-Function CNC 5 Axis Bridge Saw Machine performs routing applications easily by milling features with drill bits of various shapes...... CNC 5 axis cutting and milling machine is suitable for kitchen sink quartz countertop, tombstone, decorative stone processing, etc. Precision of the milling process controlled by industrial computer/software with RTCP function and interpolated axes.
5 Axis CNC machine Middle Bro 3520CAM has the ability to be used for all kinds of stone slabs, such as marble, granite, onyx, travertine and so on. Stone sawing five-axis bridge cutting machine CNC system allows us cutting, chamfering, milling and edging on stone and slabs in regular and irregular shapes. 5 Axis CNC Bridge Saw Cutter engraving milling machines are sawing granite and marble slabs full automatic. The software of the Schind Middle Bro 3520CAM bridge saw milling machine knows that it needs to change its location to avoid damage to the finished part before starting the second job and can automatically vacuum. Our Middle Bro 3520CAM 5-axis bridge cutting machine uses a 2-piston hydraulic table that can lift up to 85° for easy loading and unloading of natural stone slabs.
Since it is necessary to zero the vibration when working with natural stone in both horizontal cuts and vertical processing, it is necessary to use a monoblock body structure, strong chassis and quality parts at the movement points. All components of the multi-axis CNC marble slab cutting machine must be rigidly assembled technically and mechanically for advanced cutting purposes. Therefore, all vertical and transversal travels on the machine have 100% accuracy. Schind 5 Axis 3d Cnc Machine for stone slabs owes its precision cutting ability at high speeds to its rigid structure.
We use special software for scanning of marble, stone and granite slabs on our 5 axis bridge cutting saw machine. After it’s camera completes stone slab scanning with augmented reality, then the operator can distribute the objects on the scanned marble slab on the screen. Automatic slab cutting and processing are possible with software optimization fully automated and can be programmed from the control panel which has a user-friendly interface. Multi-Function CNC 5 Axis Bridge Saw Machine performs routing applications easily by milling features with drill bits of various shapes...... CNC 5 axis cutting and milling machine is suitable for kitchen sink quartz countertop, tombstone, decorative stone processing, etc. Precision of the milling process controlled by industrial computer/software with RTCP function and interpolated axes.
5 Axis CNC machine Middle Bro 3520CAM has the ability to be used for all kinds of stone slabs, such as marble, granite, onyx, travertine and so on. Stone sawing five-axis bridge cutting machine CNC system allows us cutting, chamfering, milling and edging on stone and slabs in regular and irregular shapes. 5 Axis CNC Bridge Saw Cutter engraving milling machines are sawing granite and marble slabs full automatic. The software of the Schind Middle Bro 3520CAM bridge saw milling machine knows that it needs to change its location to avoid damage to the finished part before starting the second job and can automatically vacuum. Our Middle Bro 3520CAM 5-axis bridge cutting machine uses a 2-piston hydraulic table that can lift up to 85° for easy loading and unloading of natural stone slabs.
