Our heavy-duty folding machine, which is needed in many areas such as ventilation, construction, on-board equipment, space and aviation, will serve your business for many years with its thick steel chassis.
GET CONTACT FOR THIS PRODUCT
Prev
All
Next
Brand: SCHIND
Category: Machine , Sheet Metal Folding Machines
Origin: Made in Turkey
Minimum Order: 1Pc
Working Length (mm): 2535mm
Capacity (mm): 3,5mm (mild steel):
Max Bending Angle (°): 130 °
Dimensions LxWxH (mm): L 3200mm W 1100mm H 1600mm
Weight (kg): 2850kg

PRODUCT DESCRIPTION

TECHNICAL SPECIFICATIONS

Strong steel welded construction
Split blades that made of 1050 Steel can slide out
Joystick controlled squeezing and bending
Manual backgauge 500mm
Manual angle scale
Quick angle adjustment with scaled handwheel
The distance between upper and lower jaws can be 100mm
130 ° maximum bending angle

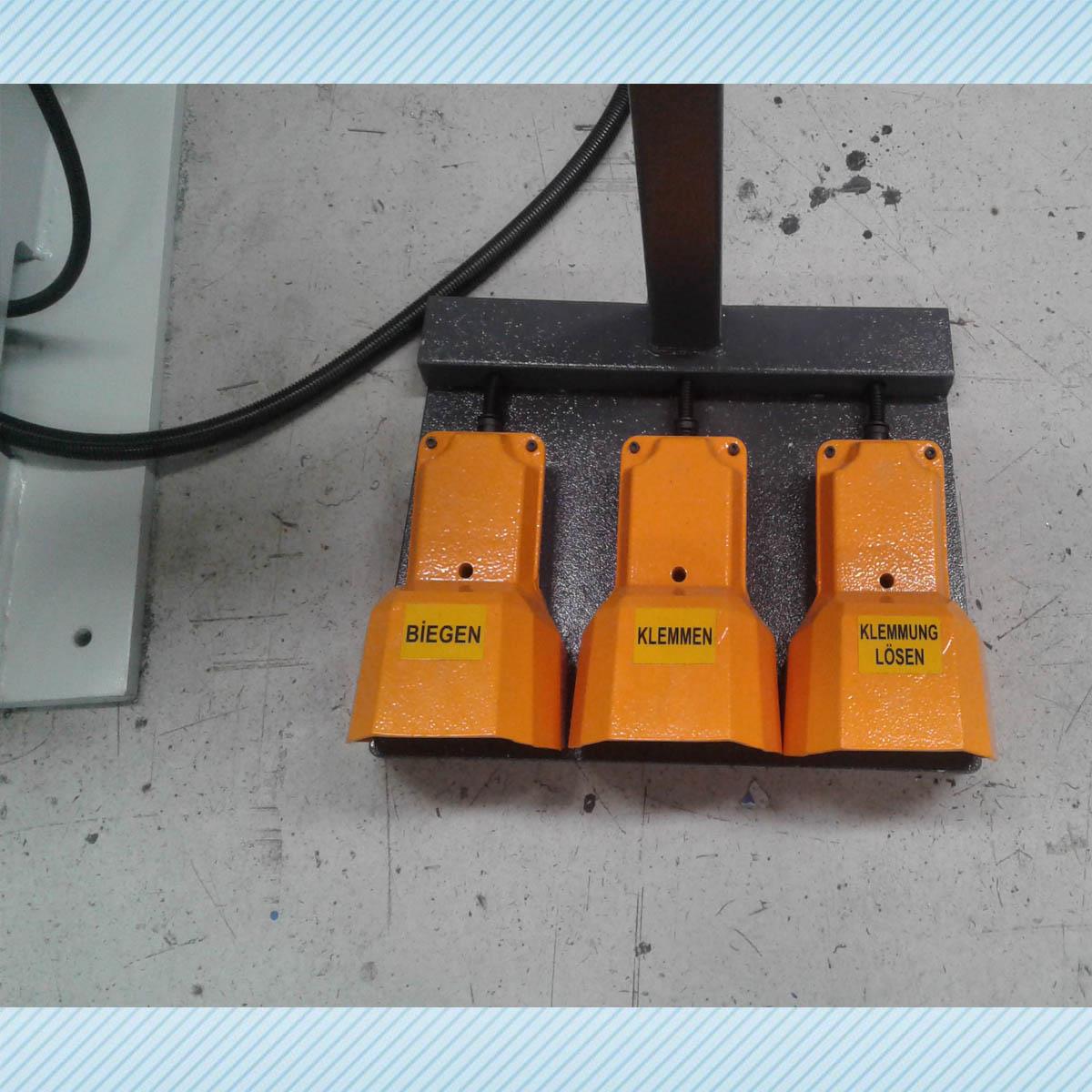

Ability to easily bend and slide the sheet to be bent thanks to the remote foot pedal and the jaw opening and closing feature
Compliance with EU safety specifications, CE certified

Working Length: 2535mm
Capacity (mild steel): 3,5mm

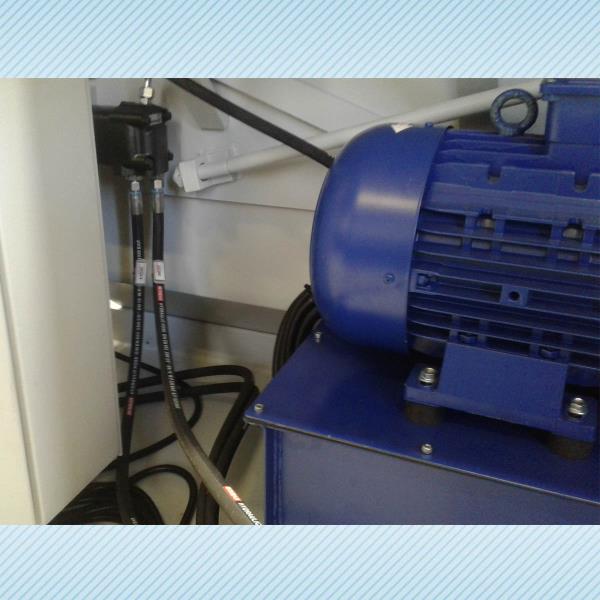

Clamping Motor: 0,55kw
Clamping Pressure: 50 bar
Bending Motor: 2,2kw
Bending Pressure: 80 bar
Length: 3200mm
Width: 1100mm
Height: 1600mm
Weight: 2850kg
