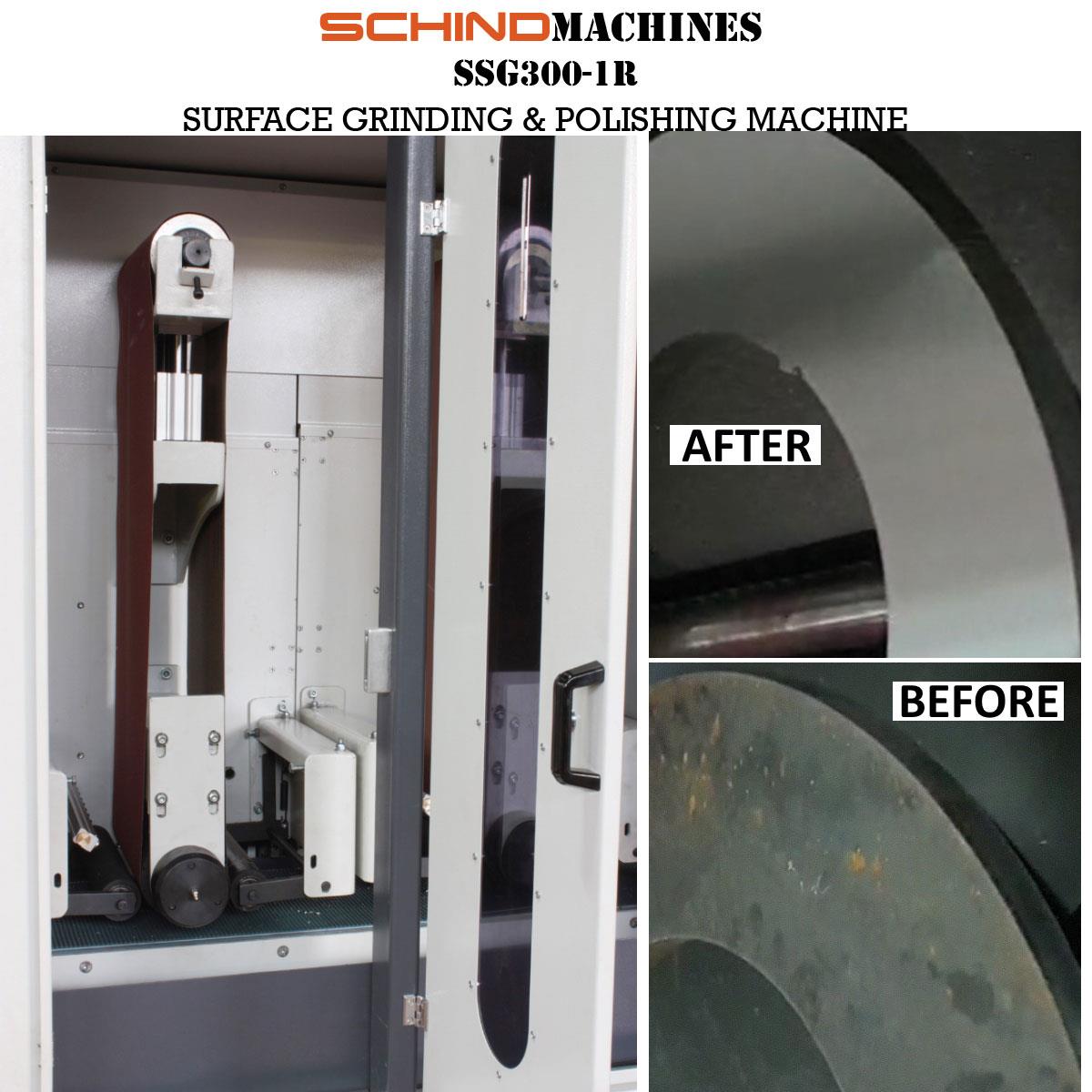

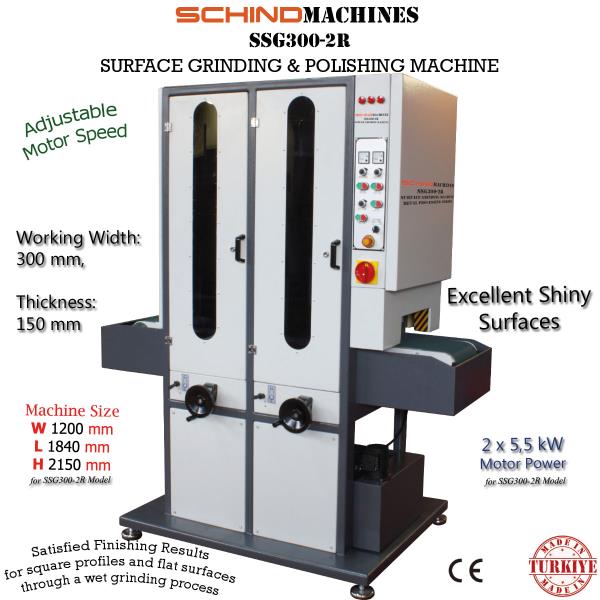

Solid design of our abrasive belt sanding machine which has well-known components provides mass production high performance productivity in industrial continuous operation. Schindmachines created and developed wide belt sander machines for grinding, deburring, finishing of flat parts of wood, steel, stainless steel, brass and aluminum to get smooth surfaces by abrasion with sanding belts. You can use our flat surface sander machine which is equipped with sanding belts to remove scratches, rust or any deformation successfully.

     Wide belt lacquer sanding machines with contact rollers for flat surfaces are most effective technology. Rubber roller contact pressure on the material gives thickness-fixed sanded surfaces for all flat surfaces. It is useful even for metal profiles. Fixed standard surface appearance can be provided by this surface belt sander machines. It is simple but best sanding solution to satisfy your metal or wood surface finishing requirements.


	TECHNICIAL SPECIFICATIONS	SSG300-1R	SSG300-2R	SSG300-3R
	Machine Working Width (mm)	300 mm	300 mm	300 mm
	Material Processing Thickness (mm)	0 – 150 mm	0 – 150 mm	0 – 150 mm
	Sanding Motor Power (Speed Adjustable)	5,5 kW	(5,5 x 2) 11 kW	(5,5 x 3) 16,5 kW
	Sanding Speed	3-15 meters/second	3-15 meters/second	3-15 meters/second
	Sanding Belt Size	2000 x 300 mm	(2x) 2000 x 300 mm	(3x) 2000 x 300 mm
	Conveyor Belt Motor Power	0,55 kW	0,75 kW	1,10 kW
	Water Motor Power	0,09 kW	0,09 kW	0,09 kW
	Machine Control	Analogue	Analogue	Analogue
	Electrical Panel	Siemens	Siemens	Siemens
	Motor Drivers	Mitsubishi	Mitsubishi	Mitsubishi
	Cover Safety Switch	Yes	Yes	Yes
	Motor Protection Unit	Yes	Yes	Yes
	Guarantee	1 Year	1 Year	1 Year
	Machine Dimensions (mm) WxLxH	1200 x 1400 x 2150	1200 x 1840 x 2150	1200 x 2400 x 2150
	Machine Weight (kg)	850	1250	2200
	Optional	Touch Screen PLC Delta	Touch Screen PLC Delta	Touch Screen PLC Delta
		Air Blower	Air Blower	Air Blower
		Roller Table	Roller Table	Roller Table
