CKF-H Hydraulic Box and Pan Folders
Brand: SCHIND
Category: Machine , Folders Box and Pan
Origin: Turkey
Minimum Order: 1 Set
Working Length (mm): 1020, 1270, 1520, 2020, 2520, 3020
Capacity (mm): 4,0, 2,0, 2,5, 3,0
Max Bending Angle (°): 135
Dimensions LxWxH (mm): 1160x1100x1260, 1380x1100x1260, 1710x1100x1260, 2200x1100x1260, 2730x1100x1260, 3230x1100x1260
Weight (kg): 1350, 1750, 2250, 2650, 750, 950

PRODUCT DESCRIPTION

  • 135 degree bending Angle
  • Strength – Redundance – Easy to use – Safe & Quick
  • Arcor Nitrocarburized hard Segmented blades
  • Joystick controls to clamp and Bend
  • Bending angle setup by Manual Pin

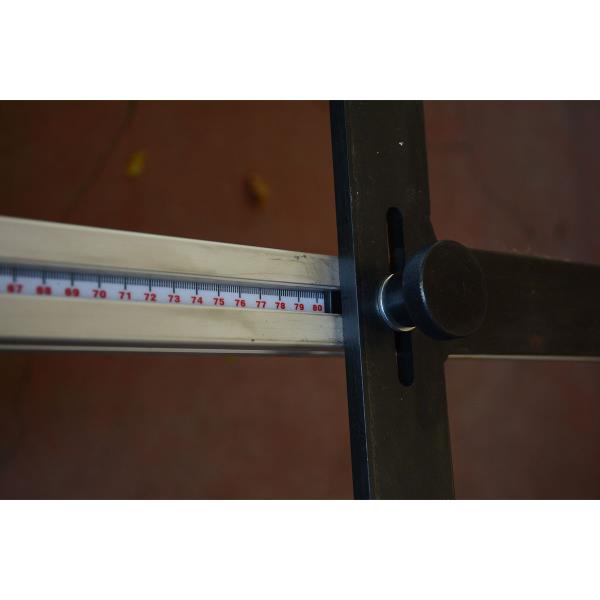

  • Manual Back gauge

OPTIONS :

  • Foot Pedal and Electrical Cabinet
  • Digital Read-Out
  • Nc Controlled back gauge
  • Motorized back gauge
  • Special Blade Sizes
ENGLISH   CKP-H



1020×4,5

CKP-H



1270×4

CKP-H



1520×3,5

CKP-H



2020×3

CKP-H



2520×2,5

Working Length mm 1020 1270 1520 2020 2520
Bending Angle   135 135 135 135 135
Capacity(mild steel) mm 4,5 4 3,5 3 2,5
Pressing Motor kw 0,55 0,55 0,55 0,55 0,55
Folding Motor kw 1,1 1,1 2,2 2,2 2,2
Length mm 1160 1380 1710 2200 2730
Width mm 1100 1100 1100 1100 1100
Height mm 1260 1260 1260 1260 1260
Weight kg 750 950 1350 1750 2250
