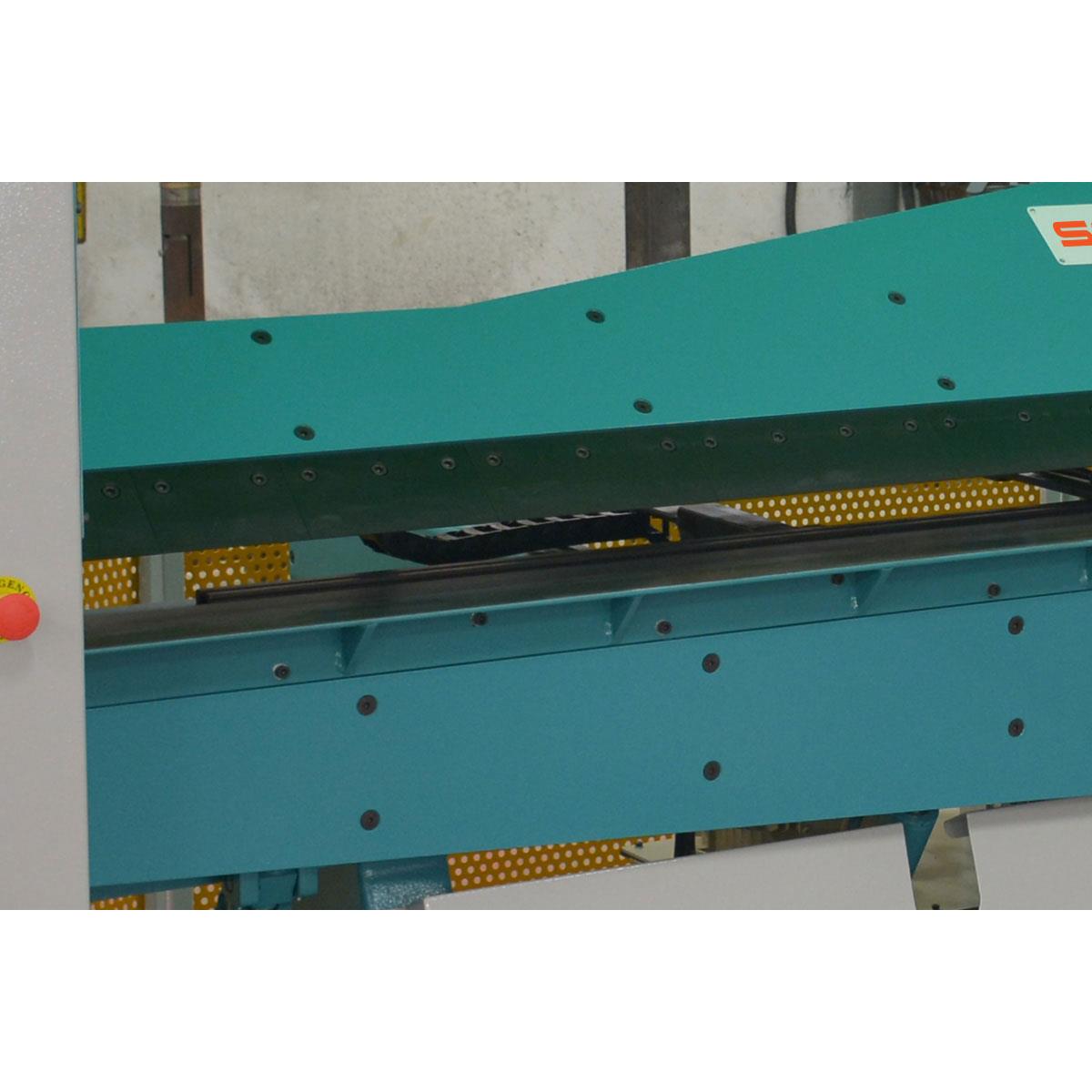

Schind CKF-H NC Cajas y bandejas automatizadas hidráulicas
Código de producto: SCHIND CKF-H NC CAKA
Marca: SCHIND
Categoría: Máquina , Folders Box and Pan
Origen: Turquía
Pedido mínimo: 1 juego
Working Length (mm): 2020, 2520, 3020
Capacidad (mm): 2.0, 2.5, 3.0
Ángulo de flexión máximo (°): 135
Dimensiones LxWxH (mm): 2650x1020x1700, 3250x1050x1700
Weight (kg): 2600, 3200

DESCRIPCIÓN DEL PRODUCTO

Variants   CKF-H NC 2020×3,0 CKF-H NC 2520×2,5 CKF-H NC 3020×2,0
Working Length mm 2020 2520 3020
Bending Angle   135 135 135
Capacity(mild steel) mm 3,0 2,5 2,0
Main Motor Power kw 5,5 5,5 5,5
Backgauge motor kw 0,75 0,75 0,75
Length mm 2700 3200 3700
Width mm 1900 1900 1900
Height mm 2200 2200 2200
Weight kg 1400 1800 2050

SPECIALITIES:

  • NC Controlled Bending
  • Automatic adjusted NC Backgauge
  • Foot Pedal
  • Auto – Semi-Auto and Manual Operation
  • STANDARDS:
  • High quality steel welded construction
  • Lower and Upper Blade Jaws open up to 100mm
  • Ideal easy use for Industrial and special design purposes
  • Easy handling of material by hands with assist op foot pedal operation
  • Built according to EC Safety Directives (CE Mark)
  • User’s manual

OPTIONS :

  • Special Blade Sizes
