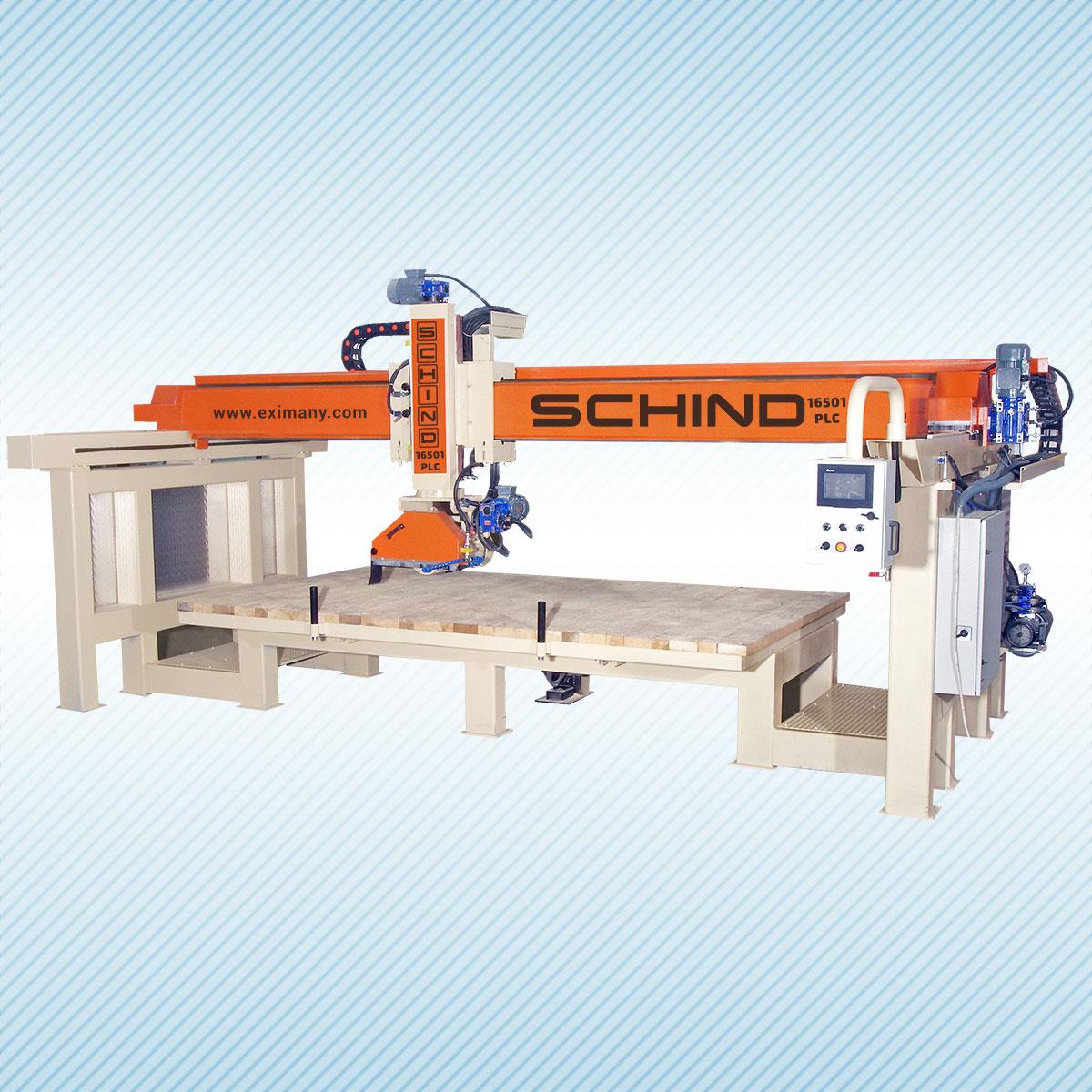

SCHIND 16501 PLC - Bridge - Marble, Stone and Granite Cutting Machine
Bridge Movement, PLC control, 4 axis movement and steel body with ideal features, durable, long-lasting machine. This machine which can cut at 0, 90, 45 degree angle will make your job easier in cutting marble, natural stone and granite plates.
Product Code: SK16-0105
Brand: SCHIND
Category: Machine , Marble, Natural Stone and Granite Machines
Origin: Turkey
Minimum Order: 1 Set
Machine Dimensions:
Length x Width x Height
600 x 300 x 280 cm
Machine Control System: PLC System
Cutting Head Motion with Steel Wheels: 3500 mm
Cutting Head Motion with Steel Wheels: 2000 mm
Bridge Motion with Steel Wheels: 2000 mm
Saw Motor Power: 9 .0 - 13 kw
Circular Head Motion: 90° Hydraulic Power Unit
Vertical Saw Motion: 400 mm
Side Cutting and Profile Processing Angle: 45° - 0 - 90°
Saw Speed: 1400 / 2900 rpm
Hydraulic Workbench: Hydraulic Power Unit
Maximum Saw Size: 350 - 500 mm
Cutting Depth: 140 mm
Voltage: 380V

PRODUCT DESCRIPTION

  • Longitudinal, transverse and 45 ° cutting machine,
  • Cuts on X and Y axis,
  • The bridge and its table work fully automatic,
  • There are both manual and automatic double page digital touchscreen management panel,
  • It can make automatic dimensioning in 10 different sizes,
  • Upper body movements are working with shaft system,
  • Marble plates can be easily put on the cutting table by the dumper hydraulic system,
  • Technical support is possible to the machine brain with internet connection.
